Description

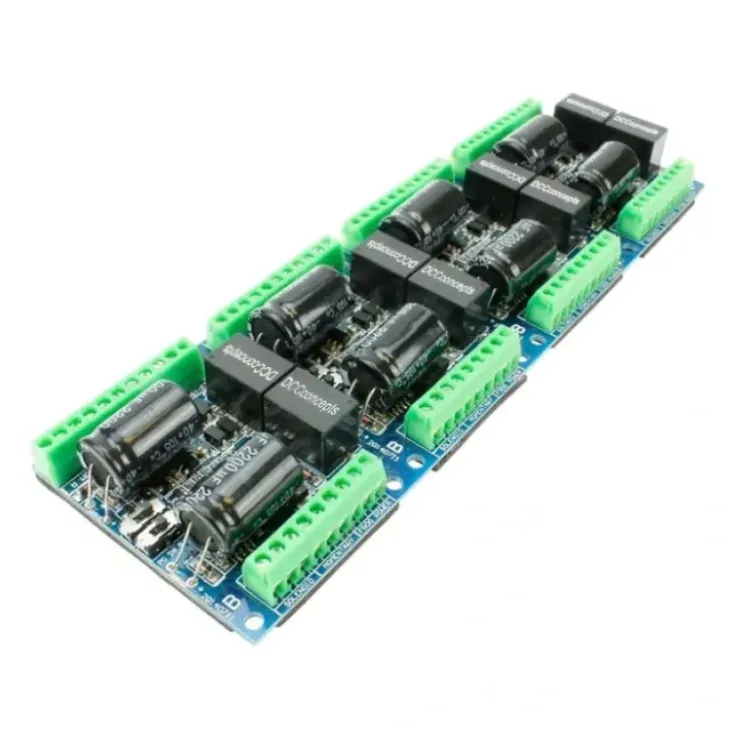

This is DCC Concepts ADS8FX Universal DCC Decoder CDU Solenoid Drive (8-way, Added Features). ADS-8fx is a high performance high feature level 8-output DCC accessory decoder with built-in CDU on every output designed to power Seep, Hornby, Peco and similar high current point motors properly and make sure they change every single time! ADS-8fx can be powered with either DC (for DC only layouts) or with DCC to give all the advantages of digital or computer control. ADS-8fx will tolerate a very wide DC input voltage or a wide track bus voltage range and guarantees to give superb results every time. Our specially designed approach to charging control means that power supply loading is very low on both DC or DCC layouts, and because it stores all the energy it needs on-board, when it changes your solenoids it will NOT drain important train-running power from your system. ADS-8fx is powerful it easily changes two Seep, Peco or Hornby motors and can even manage 3 of them if the voltage is appropriate and your wire size is large enough to minimise voltage drop. Wiring is also exceptionally simple as no added or secondary power supply is needed and ADS8-fx is designed to connect directly to track power or your accessory power bus. Understanding the wiring and connections is easy too, as they are also clearly printed onto the PCB so you will never forget how it should be done, even if working under the layout! Addressing is so easy that we call it learning rather than programming there are no CVs to set and there is no need for special programming either All it needs is the changing of a simple switch to make it ready to teach once that is done all you need do it act as if you are already changing it at the address you want it to be, return the switch to the run position and its done. The ADS-8fx is easy to install, set up and connect to your layout systems: Screw connectors means no need to solder. One power input point for all of the 8 outputs. Simple 3-wire output to the device being controlled 3 high power terminals for direct connection of point frogs and/or panel LEDs and/or signals 3 switch terminals with the option of one or two push-button switches Feedback / IO data is provided via a pair of solder-pads These output a low voltage as needed with output changing from 0v to +5v for direct connection of position feedback to systems that require it or to any computer IO interface at all. Main/branch indication can be set by just swapping wires as needed! Simple Learn / Operate 2-position switch for easy addressing. Flat back for easy layout mounting. ADS-8fx simply does everything that Solenoid users have always wanted but never received from ANY solenoid motor accessory decoder in the past. ADS-8fx also has really high power available so it can control multiple point motors on each of its outputs, so it is economical too! Because it has low power needs there is no real need for added boosters just for point motors and there is another benefit almost unique within solenoid accessory decoders. Unlike all its competitors – ADS-8fx can easily be macro or program driven and will always respond to rapid-fire commands as it is not limited by the ability of the power supply or track bus to fire many solenoids in quick succession! Being able to directly control frog polarity AND be able control panel lights for signals plus offering system or computer feedback makes it something special and when it is connected via our Cobalt-S levers, the combination adds two more changeover switches, making it possible to control almost anything you can think of with nothing extra to buy or install. We are sure that makes our new ADS-8fx Accessory decoder series the very best value available!

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)

Manufacturer: DCC Concepts
Model Number: ADS8FX
MSRP: $99.95

Scale/Era: HO Scale
Model Type: Control & Electrical

The Trainz SKU for this item is P12153080.

Trainz Product Id: 12153080
